[C++][图形学]TinyRenderer第五课——相机操作

TinyRenderer项目地址： Naive camera handling – Playing with code

旋转场景而不是相机，通过旋转矩阵将所有的顶点进行旋转,下述代码是将模型绕y轴旋转30°

vec3 rot(vec3 v) {
    //旋转的角度（弧度） = 30°
    constexpr double a = M_PI/6;
    //旋转矩阵
    const mat<3,3> Ry = {{{std::cos(a), 0, std::sin(a)}, {0,1,0}, {-std::sin(a), 0, std::cos(a)}}};
    return Ry*v;
}

std::tuple<int,int,int> project(vec3 v) { // First of all, (x,y) is an orthogonal projection of the vector (x,y,z).
    return { (v.x + 1.) *  width/2,       // Second, since the input models are scaled to have fit in the [-1,1]^3 world coordinates,
             (v.y + 1.) * height/2,       // we want to shift the vector (x,y) and then scale it to span the entire screen.
             (v.z + 1.) *   255./2 };
}

int main(int argc, char** argv) {
    Model model("african_head.obj");
    TGAImage framebuffer(width, height, TGAImage::RGB);
    TGAImage     zbuffer(width, height, TGAImage::GRAYSCALE);

    for (int i=0; i<model.nfaces(); i++) { // iterate through all triangles
        auto [ax, ay, az] = project(rot(model.vert(i, 0)));
        auto [bx, by, bz] = project(rot(model.vert(i, 1)));
        auto [cx, cy, cz] = project(rot(model.vert(i, 2)));
        TGAColor rnd;
        for (int c=0; c<3; c++) rnd[c] = std::rand()%255;
        triangle(ax, ay, az, bx, by, bz, cx, cy, cz, zbuffer, framebuffer, rnd);
    }

    framebuffer.write_tga_file("framebuffer.tga");
    zbuffer.write_tga_file("zbuffer.tga");
    return 0;
}

正交投影下，z轴的影响几乎可以忽略，相机的远近不会改变物体的大小。

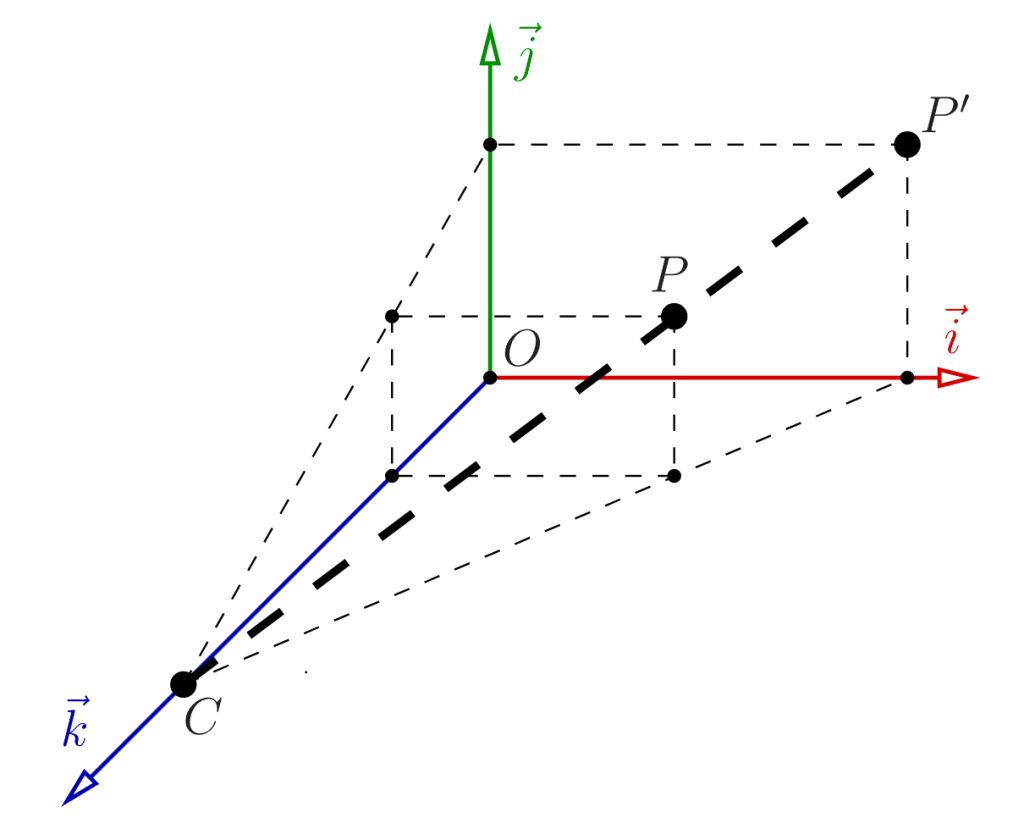

透视投影下，物体会有近大远小的特点，看起来更真实。

对旋转后的定顶进行处理，使其被投射到z=0的平面上。

vec3 persp(vec3 v) {
    //c是相机到z = 0的距离
    constexpr double c = 3.;
    return v / (1-v.z/c);
}
//...
        auto [ax, ay, az] = project(persp(rot(model.vert(i, 0))));
        auto [bx, by, bz] = project(persp(rot(model.vert(i, 1))));
        auto [cx, cy, cz] = project(persp(rot(model.vert(i, 2))));
//...

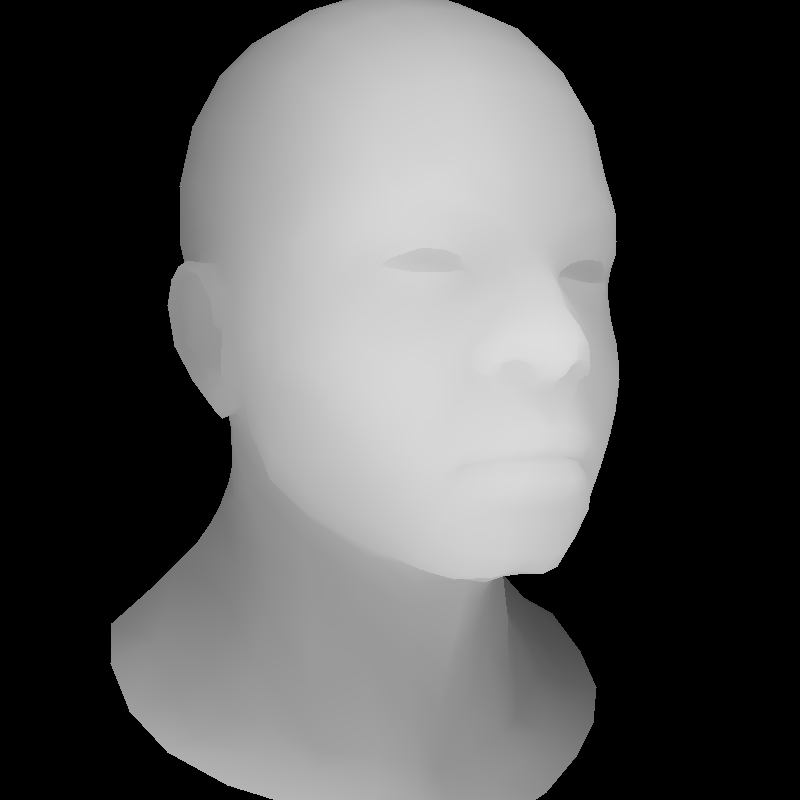

可以看到正交投影和透视投影下得到的图像还是有些许不同的。正交投影下的图像更像是2D的平面，而透视投影下的图像更有立体感。
